EIKO Signal LED Flood Light & High Bay 104,500 Lumens 600W 4000K 277–480V Black

Description

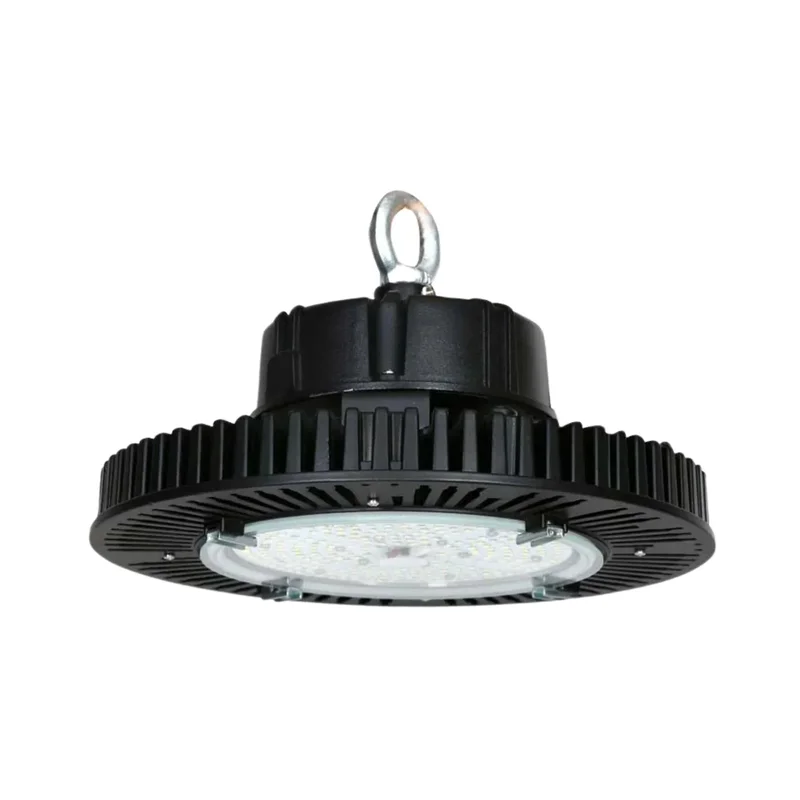

EIKO SIG-600W-740-VD Round LED Flood Light & High Bay — 600 W Commercial Fixture

The EIKO SIG-600W-740-VD from the SIGNAL series is a high-output LED flood light and high bay designed for large commercial and industrial spaces requiring robust illumination. This 600 W fixture delivers up to approximately 104,500 lumens at 5000 K with a ? 70 CRI on a high-voltage 277–480 V platform and supports 0–10 V dimming for control flexibility. It is IP66 wet location rated for demanding environments.

Key Features:

• Wattage: 600 W
• Delivered Lumens: Up to ~104,500 lm
• CCT: 5000 K
• CRI: ? 70
• Voltage: 277–480 V
• Dimming: 0–10 V dimmable
• Surge Protection: Standard 20 kV
• Environmental: IP66 wet location rated
• Construction: Cold-forged aluminum heatsink with epoxy e-coat and powder coat finish
• Lens: Tempered glass
• Operating Temp: ?40 °C to 50 °C
• Certifications: ETL/cETL, FCC, DLC Premium

Typical Applications:

• Warehouses
• Distribution centers
• High-mast outdoor areas
• Sports arenas and stadiums
• Hangars and industrial yards

Performance & Light Output
The SIG-600W-740-VD produces up to approximately 104,500 lumens at 5000 K with an efficacy around 170–175 lm/W. The fixture maintains ? 70 CRI and a rated life suitable for heavy-duty commercial environments.

Electrical & Controls
Operates on high voltage 277–480 V and includes a 0–10 V dimmable driver. A Z10 receptacle simplifies adding compatible lighting controls. Built-in surge protection helps maintain performance in industrial settings.

Construction & Durability
The fixture’s housing features a cold-forged aluminum heatsink and corrosion-resistant epoxy e-coat primer with durable polyester powder coat. A tempered glass lens and stainless-steel hardware support long-term performance in wet locations.

Installation & Mounting
Standard mounting options include yoke, slip fitter, or surface mount accessories (sold separately). The unit ships with power and dimming cables for straightforward installation.

Included
Fixture with power and dimming cables; mounting accessories sold separately.
