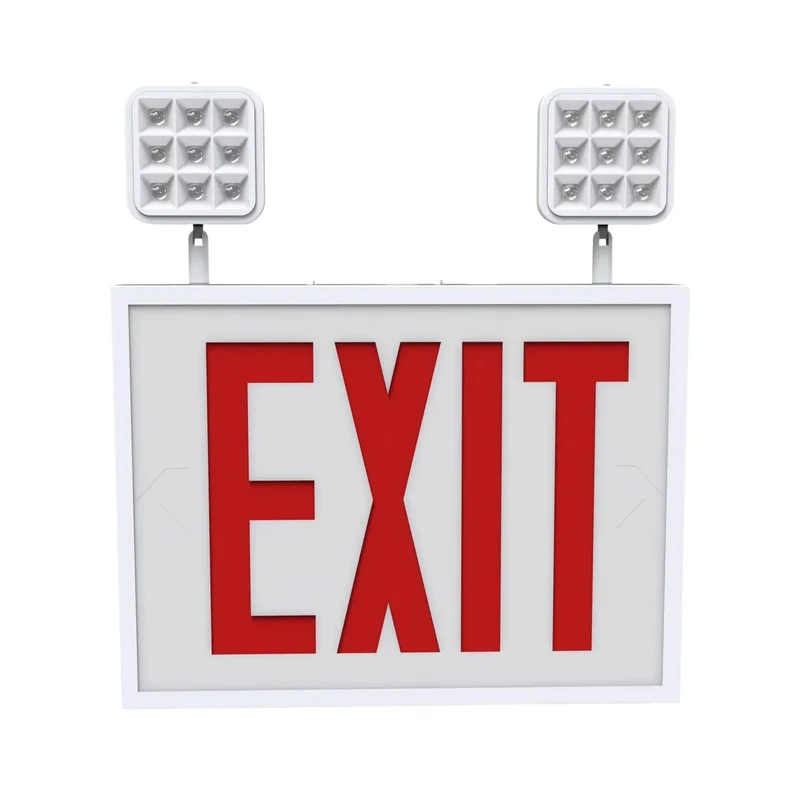

Keystone KT-EC-STCH1-WH1RW-SU Red LED Exit Combo, 90-Min Backup, 120-277V, Single Face, Chicago Approved

Description

Keystone KT-EC-STCH1-WH1RW-SU Exit Combo — 90-Minute Emergency Capability with 120-277V Input

The Keystone KT-EC-STCH1-WH1RW-SU is a Chicago Code compliant LED exit combo featuring red LED lettering and a 90-minute battery backup. Designed for safety and reliability, it operates on 120-277V input and is UL 924 compliant, making it ideal for emergency egress lighting in commercial settings.

Key Features

• Red LED Lettering: Ensures high visibility in emergency situations.
• Single Face Configuration: Designed for applications requiring a single directional exit indication.
• Surface Mounting: Supports top, side, and back mounting for versatile installation.
• Integrated Battery Backup: Nickel-Metal Hydride battery provides 90 minutes of emergency power.
• Test Switch & Indicator: Built-in test switch and charge indicator for easy maintenance.
• Steel Housing: Durable 20-gauge steel construction for long-lasting performance.
• High Lumen Output Option: Available for enhanced visibility.
• Operating Temperature: Suitable for environments ranging from 0°C/32°F to 40°C/104°F.
• UL Certified: Approved for damp locations, ensuring reliable operation in various conditions.

Performance & Illumination

The unit delivers a lumen output of 400 lumens with a color temperature of 6500K, ensuring clear visibility. The red LED lettering is designed for optimal readability in emergency situations.

Electrical & Battery

Operating on 120-277V, the unit features a Nickel-Metal Hydride battery with a capacity of 1200mAh, requiring 24 hours to recharge. It includes a test switch and charge indicator for maintenance convenience.

Physical & Installation Details

Constructed from 20-gauge steel, the fixture supports surface mounting on top, side, or back. It includes a universal J-box mounting pattern for easy installation.

Compliance & Safety

The fixture is UL 924 certified and Chicago Code compliant, suitable for damp locations with an operating temperature range of 0°C/32°F to 40°C/104°F.

What’s Included

• Keystone KT-EC-STCH1-WH1RW-SU Exit Combo Unit
• Integrated Battery Backup
• Mounting Hardware
