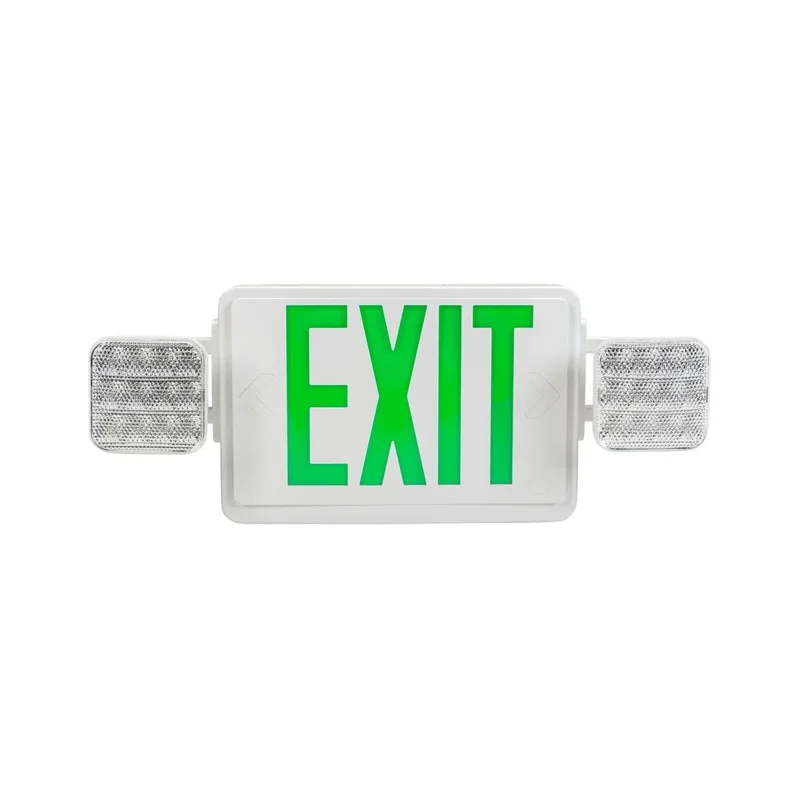

Keystone KT-EC-TP1 Exit Combo Red/Green Letters 90-Min Backup 120-277V Surface Mount White

Description

Keystone KT-EC-TP1 Exit Combo — 90-Minute Emergency Capability with 120-277V Input

The Keystone KT-EC-TP1-WH3RGW-SD-RC is a versatile exit combo fixture featuring switchable red and green lettering, providing 90 minutes of battery backup during power outages. Designed for safety compliance, it is UL 924 certified and suitable for damp locations, making it ideal for various commercial applications.

Key Features

• Switchable Lettering: Easily toggle between red and green LED colors for adaptable signage.
• Dual Facing Options: Includes single and double faceplates for flexible installation configurations.
• Remote Capable: Supports additional remote heads for extended coverage.
• Thermoplastic Housing: Durable construction with UL 94 5VA flame rating for enhanced safety.
• Integrated Test Switch: Built-in test switch and charge indicator for easy maintenance checks.
• Recharge Time: Fully recharges in 24 hours to ensure readiness for emergencies.
• Mounting Flexibility: Surface mountable on top or back for versatile installation options.
• Operating Temperature: Functions effectively in temperatures ranging from 0°C/32°F to 40°C/104°F.

Performance & Illumination

The fixture delivers a bright 6500K white light with a lumen output of 200, ensuring clear visibility of exit paths. The switchable red and green letters enhance adaptability in various settings.

Electrical & Battery

Operating on 120-277V, the unit features a nickel-metal hydride battery with a 2400mAh capacity, providing reliable power during outages. The integrated test switch and charge indicator facilitate regular maintenance.

Physical & Installation Details

Constructed from durable thermoplastic, the fixture measures 16.10 inches in length, 4.37 inches in width, and 7.95 inches in height. It includes all necessary hardware for surface mounting on top or back.

Compliance & Safety

Certified for UL 924 and damp locations, the fixture meets stringent safety standards. It operates effectively within a temperature range of 0°C/32°F to 40°C/104°F.

What’s Included

• Two ‘EXIT’ sign faceplates
• One back/solid faceplate
• Mounting hardware
