Description

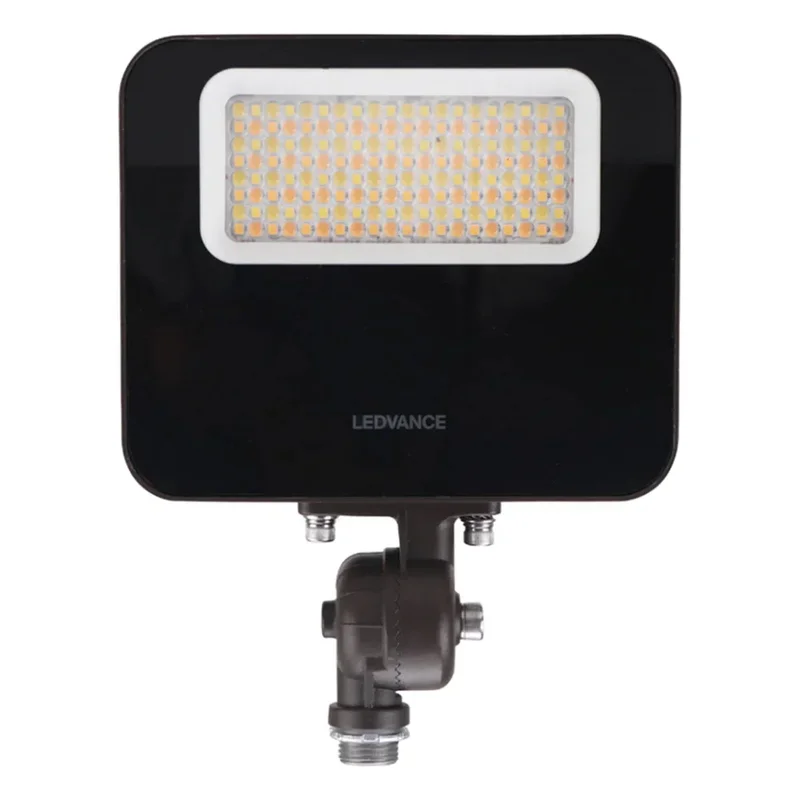

LEDVANCE Sylvania 66316 Opti-Select Flood Light — 30W, Selectable CCT & Power, Adjustable Beam, FLEXMOUNT, 120-347V, Bronze
The LEDVANCE Sylvania 66316 (FLOODLTPS030UNHD8SC2ADJBZP) is a high-performance, fully selectable LED flood light designed to deliver exceptional illumination for buildings, facades, signs, and gardens. This powerful luminaire produces up to 4,350 lumens and allows installers to easily toggle between three wattage levels (30W, 25W, 15W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It also introduces OPTI-SELECT technology, which gives you the ability to manually adjust the beam angle (55°, 75°, or 90°) via a simple switch, shifting from focused spotlighting to widespread floodlighting instantly. Operating on a versatile 120-347V driver, this model comes equipped with an integrated photocell for automated dusk-to-dawn energy savings. Built for longevity, the 66316 is housed in a durable design with an IP65 rating for premium protection against the elements. With a 5-year warranty, high efficacy up to 145 LPW, and standard 0-10V dimming, it is a perfect all-in-one solution for professional-grade exterior lighting.
Key Features
- Wattage: Field adjustable to 30W, 25W, or 15W.
- Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
- Dimming: Integrated 0-10V dimming capabilities.
- Optics: OPTI-SELECT adjustable beam angles (55°, 75°, 90°).
- Photocell: Integrated photocell included for dusk-to-dawn operation.
- Mounting Type: FLEXMOUNT includes both a 1/2″ IPS knuckle mount and a trunnion mount in the box.
- Delivered Lumens: Up to 4,350 lumens at the highest 30W setting.
- Environmental Ratings: IP65 rated for dust and water; suitable for wet locations.
- Warranty: 5-Year Manufacturer Warranty.
Typical Applications
- Building perimeters and facade illumination
- Landscape, garden, and sign lighting
- Commercial architectural accents
- General exterior area and security lighting
Performance & Light Output
The LEDVANCE Sylvania 66316 provides high-intensity, uniform light with a maximum output of 4,350 lumens and an excellent efficacy of up to 145 lm/W. Its advanced optical design ensures excellent color consistency (80+ CRI). With long-life LEDs rated for 100,000 hours, this fixture significantly reduces maintenance and energy costs over time.
Electrical & Controls
Equipped with a highly flexible driver and robust 6kV surge protection, the 66316 is built for exceptionally stable performance across a wide 120-347VAC voltage range. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated photocell to automate daylight operation.
Construction & Durability
The fixture features a rugged housing finished in bronze. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme ambient temperatures ranging from -40°F (-40°C) up to 122°F (50°C).
Installation & Mounting
This model utilizes LEDVANCE’s FLEXMOUNT system, providing maximum installation flexibility. The box includes both a 1/2″ IPS knuckle mount (ideal for standard junction boxes or landscape posts) and a trunnion mount (for flat surface installations), giving installers exactly what they need right out of the package.
What’s Included
- LEDVANCE Sylvania 66316 Opti-Select LED Flood Light (Bronze)
- 1/2″ IPS Knuckle Mount
- Trunnion Mount
- Integrated Photocell
- 5-Year Manufacturer Warranty
