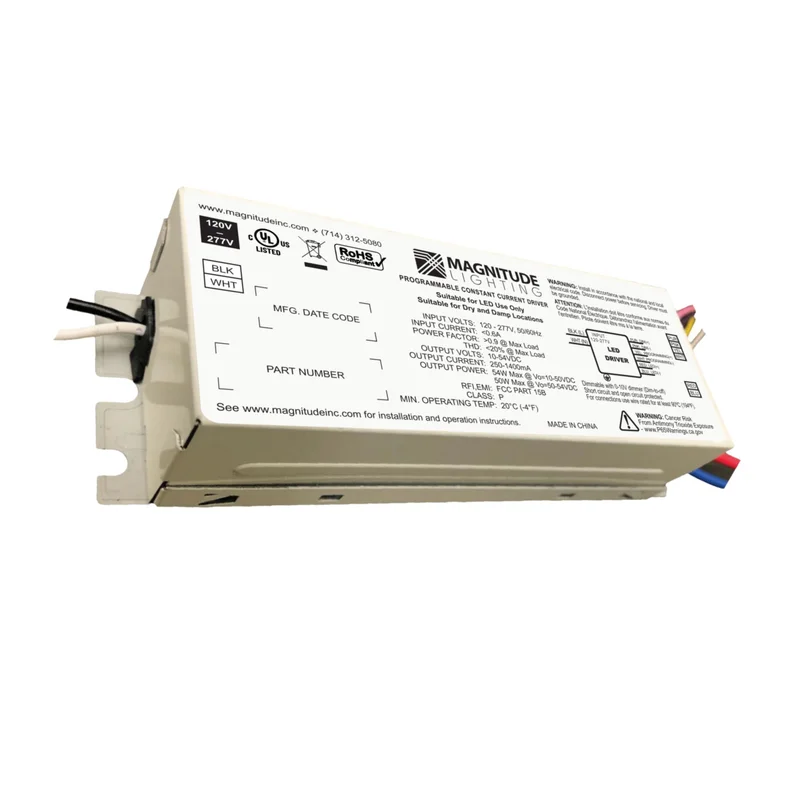

Magnitude Lighting CFlex Programmable 0-10V Dimmable LED Driver – 54W/85W

Description

Simple and Intuitive Programmable LED Driver for Any Installation

Magnitude CFLEX Compact and Linear drivers are simple and intuitive programmable LED drivers suitable for virtually any installation scenario. Replacement-ready and Class P Listed, these compact and easy-to-install LED drivers save time, reduce SKUs, and are ideal for OEM applications.

Available Models:

• Compact (54W): 250-1400mA output current, 10-54V output voltage – space-saving design ideal for tight fixture installations
• Linear (85W): 700-2400mA output current, 10-55V output voltage – traditional form factor for standard fixture compatibility

Universal Specifications:

• Input Voltage: 120-277 VAC for versatile installation options
• Dimming: 0-10V dimming down to 1% with dim-to-off functionality

Key Features:

• 2-Wire Programmable: Customize with the optional stand-alone portable programming tool – no PC or cellphone interface required
• Pre-Programmed Options: Available pre-programmed for high volume installations
• Superior Dimming Control: Smooth 0-10V dimming to 1% with dim-to-off for complete control
• Replacement-Ready: Class P Listed for easy retrofits and replacements
• UL Listed, Class 2: Meets safety standards for reliable operation

Compliance & Warranty:

• Meets Title 24 & JA8 Requirements
• 5-Year Warranty for peace of mind

Benefits:

The CFLEX driver’s programmable design allows you to consolidate inventory and reduce SKU complexity. Whether you need pre-programmed drivers for high-volume installations or custom programming for specific applications, the optional stand-alone two-wire programming tool makes field customization quick and easy without requiring computers or smartphones.

Ideal Applications:

Perfect for OEM applications, retrofit projects, new construction, retail displays, office spaces, and architectural installations where reliable dimming performance, flexible programming, and easy installation are essential.
