Description
Fanimation Odyn 72” Ceiling Fan — Matte White

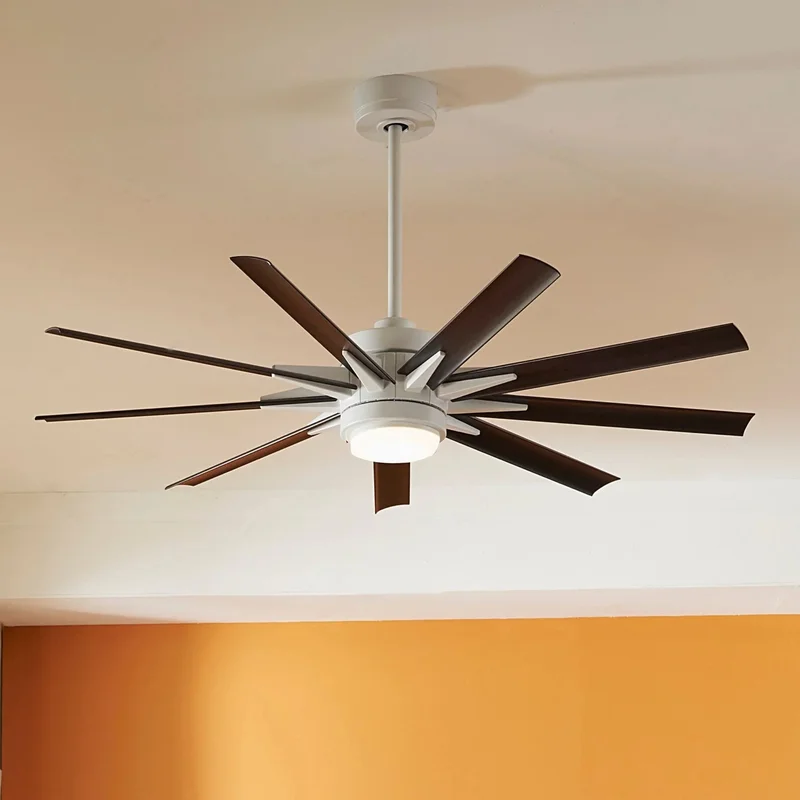

The Fanimation Odyn MAD8152MWW is a 72” ceiling fan featuring a sleek Matte White finish. This fan is equipped with a powerful DC motor and is rated for wet locations, making it ideal for both indoor and outdoor use. The fan includes a set of nine blades, providing a customizable blade span of 56”, 64”, or 72”.
Key Features
- Blade Span Options: 56”, 64”, and 72”
- Motor Type: DC135 sensorless DC motor
- Environment Rating: Wet Location
- Lighting: 18-watt CCT LED with selectable 3000K/4000K/5000K
- Control Options: Wi-Fi receiver and TR305 remote control
- Sloped Ceiling Compatible: Up to 27° standard, up to 42° with kit
- Downrod Options: Includes 12” downrod, optional lengths available
- Airflow Efficiency: 321 CFM/W
- Reversible Motor: Yes
- Smart Features: fanSync WiFi APP compatible
Construction & Design
Crafted with all-weather composite blades, the fan features a 12° blade pitch for optimal air movement. The Matte White finish complements a variety of decor styles.
Smart & Control Features
Includes a Wi-Fi receiver and TR305 remote control with 16 fan speeds, fresh air, reverse, ON/OFF dimmer light levels, and CCT selection. Compatible with the fanSync WiFi APP for enhanced control.
Electrical & Installation
Requires a 120V AC, 60 Hz, 15 amp circuit. Compatible with sloped ceilings up to 27° with the standard kit, and up to 42° with an optional kit. Includes a 12” downrod; additional lengths available.
Light Output & Performance
Delivers 9193 CFM at high speed with an efficiency of 321 CFM/W. The integrated LED light provides 1600 lumens with selectable color temperatures of 3000K, 4000K, and 5000K.
What’s Included
- 72” Ceiling Fan
- 18-watt CCT LED Light Kit
- Wi-Fi Receiver
- TR305 Remote Control
- 12” Downrod
