Description

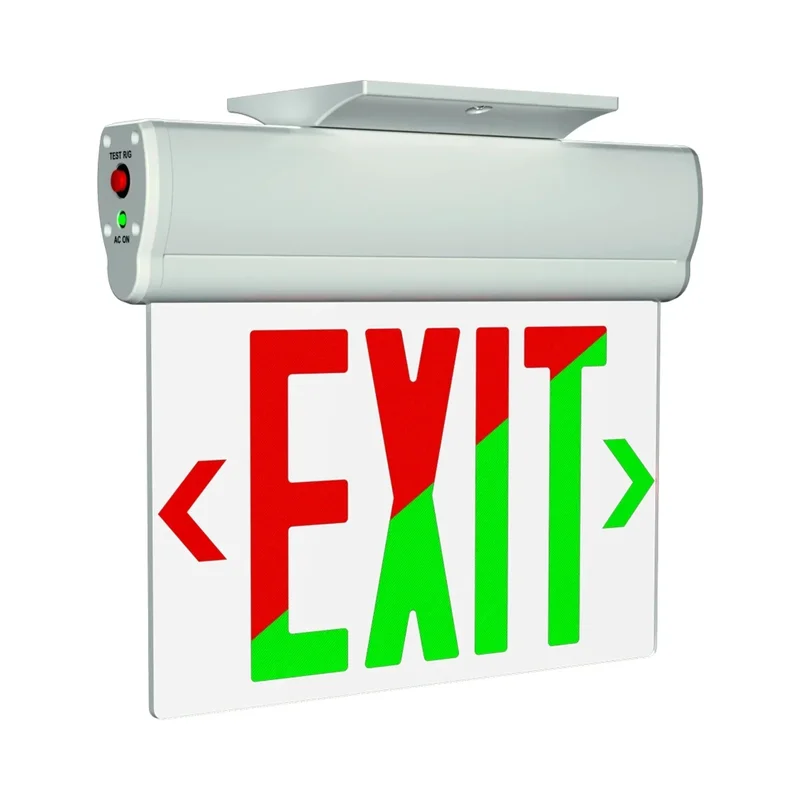

The RAB ELX series delivers versatile emergency egress lighting with multiple configurations to suit any commercial application. Available in thermoplastic or NYC-compliant aluminum construction, this edge-lit exit sign family offers selectable letter colors, clear or mirror panel options, and universal mounting flexibility for comprehensive project coverage.
Features
Multiple Housing Options: Choose thermoplastic construction for cost-effective installations or aluminum housing for NYC building code compliance and enhanced durability in high-traffic environments.
Flexible Panel Configurations: Clear acrylic panels for single-face applications or mirror panels for double-face center-corridor installations provide visibility solutions for diverse architectural requirements.
Selectable or Fixed Letter Colors: Thermoplastic models feature field-selectable red or green lettering via dipswitch, while NYC-compliant aluminum models include fixed red lettering to meet municipal code requirements.
Universal Mounting Capability: Every model includes hardware for wall mounting, ceiling mounting (standard or sloped), and recessed installation, plus 180° swivel panel for optimal positioning in any space.
Removable Directional Arrows: Customize each sign with left, right, or no-arrow configurations to match specific egress path requirements in complex floor plans.
Reliable Emergency Battery Backup: Nickel-metal hydride battery provides 90 minutes of emergency illumination at 120-277V with manual test switch and 30-second diagnostic capability across all models.
Energy-Efficient Operation: Low 1.7W power consumption with wide operating temperature range (32°F to 104°F) ensures reliable performance in various commercial environments.
Applications
The RAB ELX series excels in office buildings, retail spaces, educational facilities, healthcare corridors, hospitality venues, industrial warehouses, and municipal properties. Thermoplastic models suit standard commercial installations, while NYC-compliant aluminum models meet New York City building code requirements. Universal mounting options accommodate new construction and retrofit projects requiring flexible installation methods.
Specifications
Housing Options: White thermoplastic or silver aluminum (NYC-compliant)
Panel Options: Clear acrylic (single-face) or mirror panel (double-face)
Letter Colors: Red/Green selectable (thermoplastic) or Red only (NYC-compliant aluminum)
Arrows: Removable chevron arrows on all models
Voltage: 120-277V universal
Power: 1.7W input
Battery: Nickel-Metal Hydride, 3.6V, 90-minute emergency operation, 24-hour recharge
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Mounting: Wall, ceiling, sloped ceiling, recessed (hardware included), 180° swivel panel
Compliance: UL Listed, UL924, California Title 20, NEC/OSHA, FCC Part 15, RoHS; NYC models meet NYC Building Code
IP Rating: IP20
Warranty: 3-year limited
Why Choose RAB ELX Series
This comprehensive exit sign family combines practical features with code compliance across multiple configurations. Selectable letter colors and panel options eliminate inventory complexity, universal mounting methods accommodate diverse architectural conditions, and UL924 certification ensures all models meet emergency lighting standards for commercial installations.
Why Buy From Bees Lighting
Bees Lighting stocks the complete RAB ELX series with fast shipping and competitive pricing. Our team provides expert support to help you select the right configuration—thermoplastic or aluminum, clear or mirror panel, selectable or fixed letter color—for your specific project requirements.
