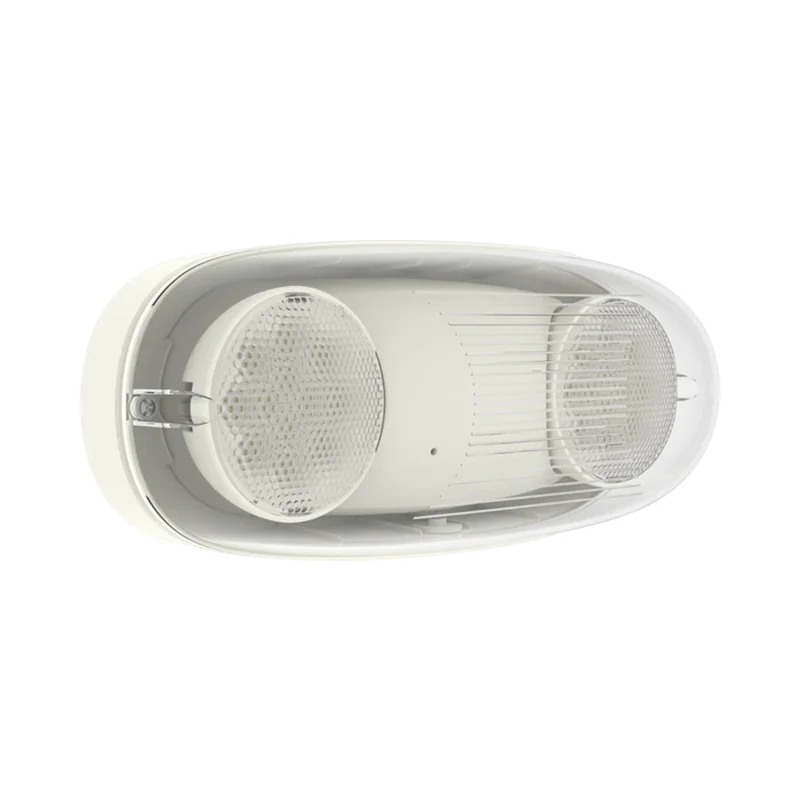

RAB EMOUT Outdoor Emergency Light — 400 Lumens, 120/277V
The EMOUT is a heavy-duty outdoor emergency light equipped with two adjustable round heads and delivering a reliable 90 minutes of battery backup. Operating strictly on a 120/277V input, this waterproof fixture is engineered to combat extreme wet environments. It ensures complete compliance with OSHA and NFPA 101 Life Safety Codes, providing critical exterior path lighting for commercial facilities and loading docks.
Key Features
- Housing Material: Injection-molded 5VA flame-retardant thermoplastic ABS.
- Lamp Heads: Two highly adjustable round LED heads with prismatic lenses.
- Lumen Output: 400 total lumens of emergency light.
- Emergency Runtime: Minimum 90 minutes of reliable backup illumination.
- Testing Method: Manual integrated test switch and visual charge indicator.
- Environmental Rating: IP65 wet location rated for rugged outdoor reliability.
- Input Voltage: Dual 120/277V capability for commercial electrical circuits.
- Mounting: Universal J-box mounting pattern for wall installations.
Performance & Illumination
This emergency unit relies on dual adjustable LED heads to cast a powerful 400 lumens of cool 6500K light. Precision-engineered prismatic lenses ensure optimal light distribution, allowing contractors to aim the beams precisely where exterior illumination is needed most to guide occupants away from the building safely without causing visual glare.
Electrical & Battery
Designed for commercial circuits, the fixture operates on a dual 120/277V input with a low 2.4W power draw. It is equipped with a highly reliable Nickel Cadmium battery that sustains 90 minutes of runtime and fully recharges within 24 hours. Routine safety inspections are easily managed via the manual push-to-test switch and the integrated LED charge indicator.
Physical & Installation Details
The rugged white thermoplastic housing is completely sealed, offering superior resistance to water, dust, and corrosive elements. It supports simple wall mounting applications up to an 11.9-foot maximum height via a universal J-box mounting pattern, guaranteeing a secure and weatherproof installation.
Compliance & Safety
This fixture is completely UL924 Listed and meets stringent NFPA 101, NEC, and OSHA standards. It is IP65 rated for wet locations, enduring heavy rain and extreme weather operation from 32°F to 104°F (0°C to 40°C). Furthermore, it is fully California Title 20 compliant, cementing its status as an energy-conscious safety device.
What’s Included
- (1) Outdoor Emergency Light Unit
- Mounting Hardware
