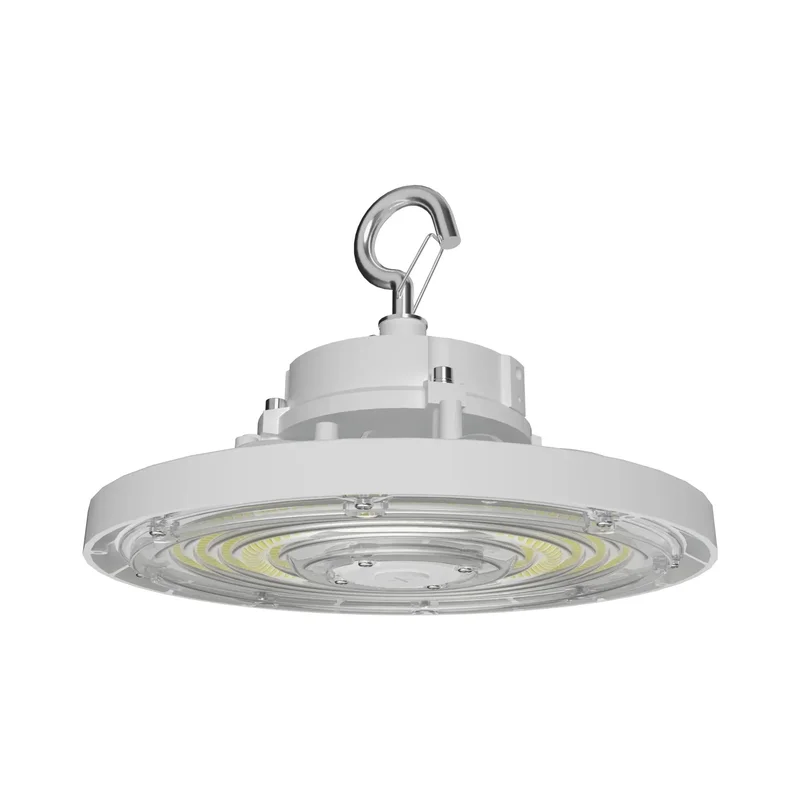

RAB H17S Field-Adjustable LED High Bay — 100W / 80W / 60W Selectable
The RAB H17S is a compact field-adjustable LED high bay that delivers up to 14,959 lumens with selectable wattage options of 100W, 80W, and 60W and selectable CCT of 3500K / 4000K / 5000K. It operates on universal 120–277V with integrated 0–10V dimming to 10%. The fixture is UL Listed for wet locations with an IP65 ingress protection rating and is DLC Premium Listed for utility rebate eligibility. Designed for commercial and industrial applications with lower bay heights or compact spaces.
Key Features
- Selectable Wattage: 100W / 80W / 60W
- Selectable CCT: 3500K / 4000K / 5000K
- Maximum Output: Up to 14,959 lumens
- Voltage Range: 120–277V
- Dimming: Integrated 0-10V dimming to 10%
- Environmental Rating: Wet location listed, IP65
- Certifications: DLC Premium, UL Listed
- LED Lifespan: 100,000 hours (L70)
Typical Applications
- Warehouses
- Distribution centers
- Manufacturing facilities
- Gymnasiums
- Workshops
- Retail stockrooms
Performance & Light Output:
Delivered lumen output varies by selectable configuration, delivering up to 14,959 lumens with strong efficacy and CRI performance across 3500K, 4000K, and 5000K options.
Electrical & Controls:
Operates on 120–277V, 50/60Hz with a constant current driver. Integrated 0–10V dimming allows dimming to 10%. Driver design supports high power factor and low THD with built-in surge protection.
Construction & Durability:
Precision die-cast aluminum housing with a polycarbonate lens provides robust durability. IP65 wet location rating ensures performance in challenging conditions. Mercury-free and RoHS compliant with long LED life.
Installation & Mounting:
Includes a hanging hook and 6-foot cord for suspension mounting. Compatible with pendant mount kits available separately.
Included
LED high bay fixture, hanging hook, and 6-foot cord.
Accessories
Optional reflectors, refractors, wire guards, PIR and microwave sensors, Lightcloud control options, pendant and surface mounting kits, and emergency battery backup solutions.
