Description

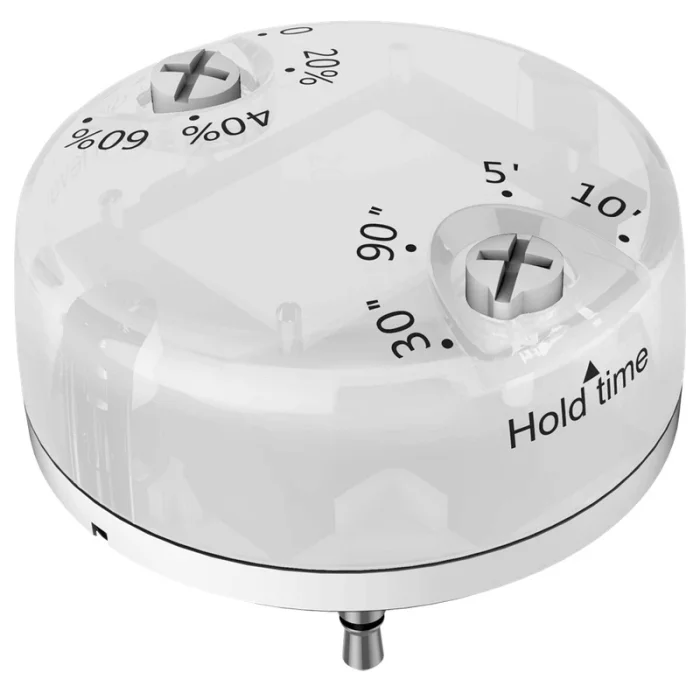

Utilize this RAB microwave sensor for HID lamps to quickly and easily add motion sensing and photocontrol capabilities to your RAB G2 LED HID retrofit lamps. Simply adjust the knobs on the top sensor to the desired parameters, plug the sensor into the insert on the bottom of the lamp and you are all set.
Features:
- 360º motion detection through walls and objects
- Continuous detection pattern
- On-off functionality
- Standby level options: off, 20% dim, 40% dim, or 60% dim
- Hold time options for motion detection: 30 seconds, 90 seconds, 5 minutes, 10 minutes
- If no motion is detected: lamp will be switched to 0-60% brightness. If any motion is detected: lamp returns to 100% output to pre-defined hold time
- Daylight photocell built in with default threshold of 300 lx
- Max mounting height of 33′
- Detection radius of 9.84′
- Standard 3.5mm AUX port connection
- Do not use with enclosed metal luminaires
