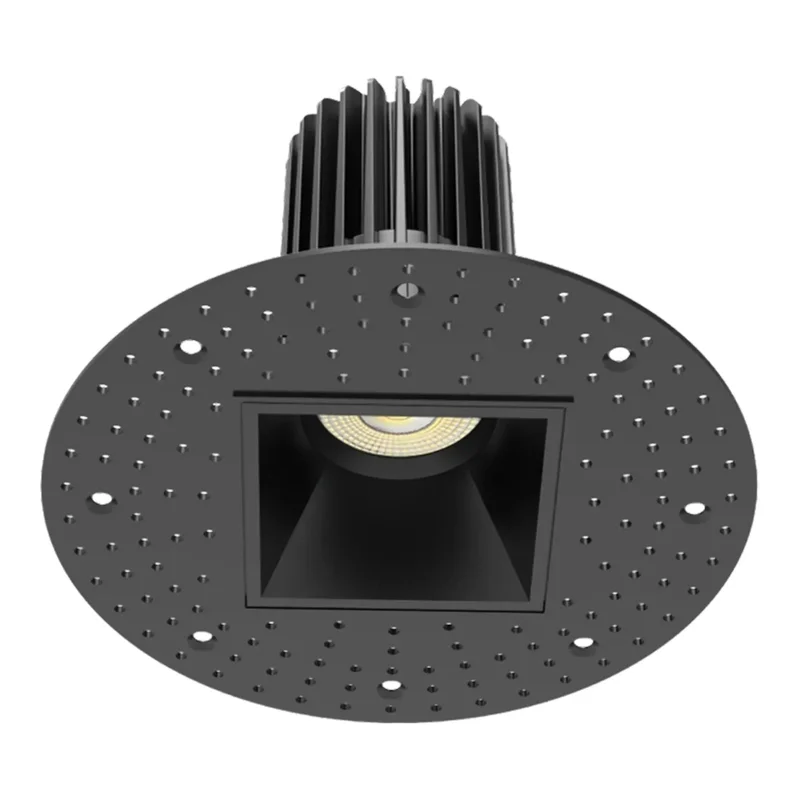

RAB R3STLB 3 in. Trimless Downlight — 15W / Selectable CCT
The RAB R3STLB is a 3-inch trimless square downlight offering a selectable CCT range from 2700K to 5000K. Delivering up to 1,250 lumens using only 15 watts, this fixture is ideal for both new construction and retrofit applications.
Key Features
- Wattage: 15W
- Lumens: 1,250 lm
- Voltage: 120V
- CRI: 90
- Beam Angle: 38°
- Dimming: TRIAC/ELV dimmable down to 10%
- Lifespan: 50,000 hours
- Compliance: Energy Star, Title 24 JA8, RoHS
- Operating Temp: -13°F to 104°F
- Construction: Metal enclosure with clear polycarbonate lens
Construction & Aesthetics
This downlight features a sleek trimless design with a black finish, providing a high-end look. The clear polycarbonate lens ensures even light distribution.
Electrical & Installation
Designed for recessed mounting, the R3STLB includes a constant current driver and is compatible with TRIAC/ELV dimming systems. No additional housing or J-box is required.
Light Output & Performance
With a high CRI of 90 and a beam angle of 38°, this downlight ensures excellent color rendering and light distribution. The LED lifespan is rated at 50,000 hours.
Typical Applications
- Residential living areas
- Commercial offices
- Retail spaces
- Hospitality environments
- Wet locations
