Description
RAB R3TL 3 in. Trimless Downlight — 15W / Selectable CCT
The RAB R3TL is a 3-inch trimless downlight delivering up to 1,354 lumens using 15W. This versatile fixture features a selectable CCT ranging from 2700K to 5000K, making it ideal for various lighting needs. Its trimless design offers a sleek, high-end look suitable for both new construction and retrofit applications.
Key Features
- Wattage Equivalency: 90W incandescent
- Input Voltage: 120V
- Dimmable: TRIAC/ELV dimming down to 10%
- Beam Angle: 38°
- L70 Lifespan: 50,000 hours
- Color Accuracy: 90 CRI
- Compliance: Energy Star, Title 24 JA8, RoHS
- Operating Temperature: -13°F to 104°F
- Construction: Metal enclosure with polycarbonate lens
- Mounting: Recessed, no housing required
- Accessories: Compatible with emergency driver T20
Construction & Aesthetics

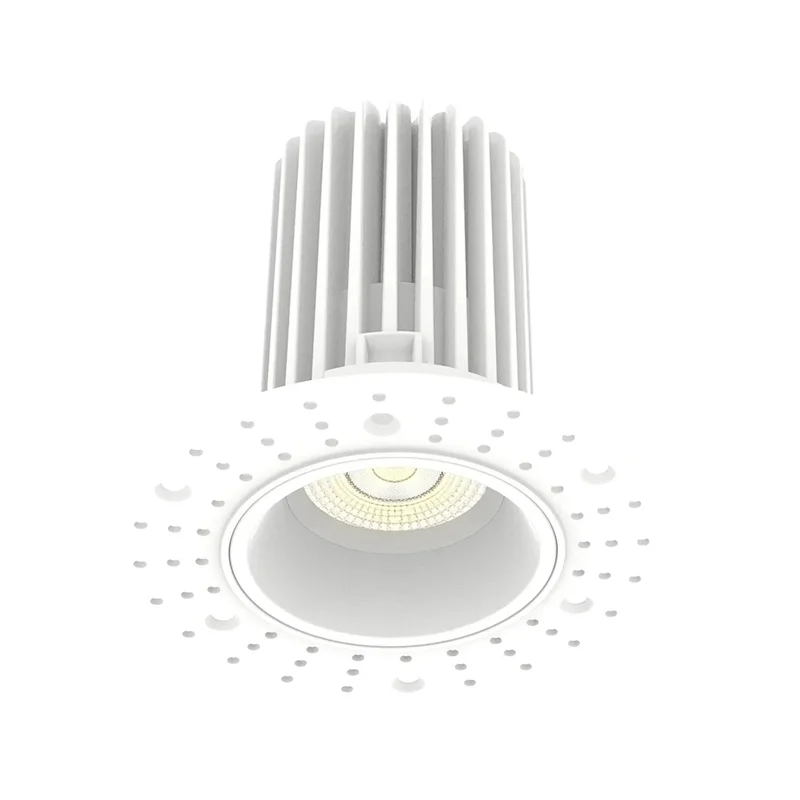

The R3TL features a smooth, trimless design with a white finish. It includes a clear polycarbonate lens for even light distribution. This downlight is suitable for both indoor and outdoor wet locations.
Electrical & Installation
Operating at 120V, this fixture includes a constant current, Class 2 driver. It is dimmable with TRIAC/ELV systems and requires no recessed housing or J-box, simplifying installation.
Light Output & Performance
With a high CRI of 90, the R3TL provides excellent color rendering. It offers a beam angle of 38° and a long lifespan of 50,000 hours, ensuring reliable performance.
Typical Applications
- Residential lighting
- Commercial spaces
- Hospitality environments
- Retail settings
- Outdoor wet locations
