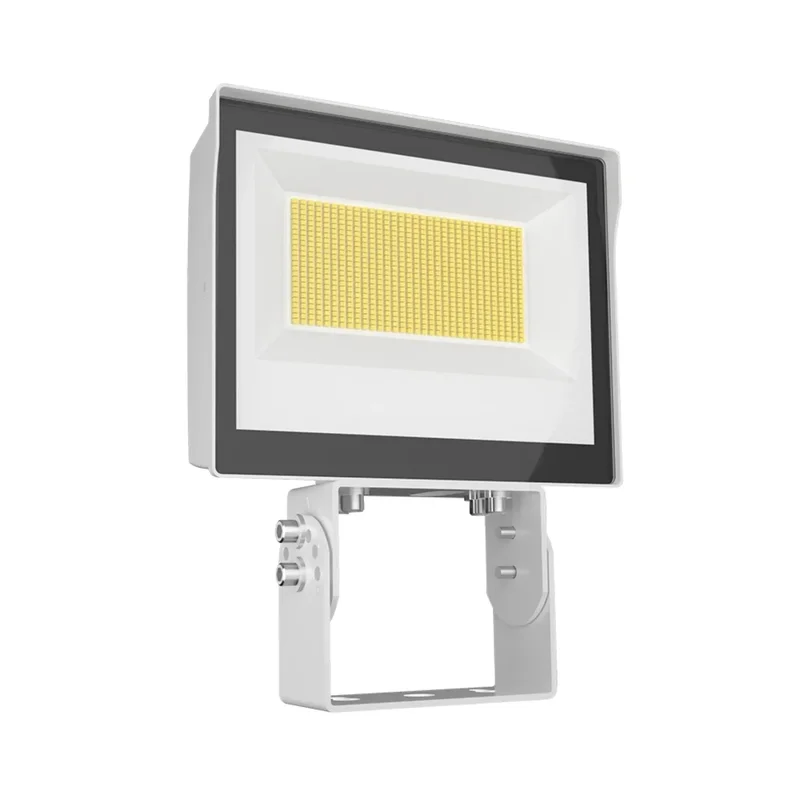

RAB X17FA105TW Field-Adjustable Floodlight — 105W, Selectable CCT, Trunnion Mount, Photocell, 120-277V, White
The RAB X17FA105TW is an ultra-economy, 2-way field-adjustable LED flood light in a clean white finish, designed to deliver bright illumination with excellent on-site versatility. Replacing traditional 400W metal halide fixtures, this compact luminaire produces up to 16,249 lumens at just 105W and allows installers to easily toggle between three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, landscapes, and architectural accents. Operating on a 120-277V driver, this model comes fully equipped with a selectable photocell that can be easily turned on or off for automated dusk-to-dawn energy savings. Built for longevity, the X17FA105TW is housed in precision die-cast aluminum with a tempered glass lens and earns an IP65 rating for durability against the elements. With a 5-year limited warranty and standard 0-10V dimming, it is a perfect solution for professional-grade exterior lighting.
Key Features
- Wattage: Fixed 105W (replaces 400W MH).
- Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
- Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
- Photocell: Integrated 120-277V selectable photocell (can be turned on/off).
- NEMA Type: Wide NEMA 7H x 7V beam spread.
- Mounting Type: Heavy-duty trunnion mount with 30° tilt increments.
- Compliance: DLC Premium Listed (Product ID: S-V9RD5R).
- Delivered Lumens: Up to 16,249 lumens at the 4000K setting.
- Environmental Ratings: IP65 rated for dust and water; UL Listed for wet locations.
Typical Applications
- White-themed building perimeters and facade illumination
- Landscape, patio, and yard lighting
- Commercial signage and architectural accents
- General exterior area and security lighting
Performance & Light Output
The X17FA105TW provides high-intensity, uniform light with a maximum output of 16,249 lumens and an efficacy of up to 155.3 lm/W. Its advanced optical design ensures excellent color consistency. With long-life surface-mount LEDs rated for 100,000 hours, this fixture significantly reduces maintenance and energy costs over time.
Electrical & Controls
Equipped with a Class 1 constant current driver and robust 6kV surge protection, the X17FA105TW is built for exceptionally stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated selectable photocell to automate daylight operation.
Construction & Durability
The fixture features a rugged precision die-cast aluminum housing finished in white and a tempered glass lens. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.
Installation & Mounting
This model includes an integrated heavy-duty trunnion mount, ideal for secure installations on flat surfaces such as walls, ceilings, or ground bases. The mount features a 30° tilt increment for very precise and secure light aiming.
What’s Included
- RAB X17FA105TW LED Field-Adjustable Floodlight (White)
- Integrated Trunnion Mount
- Integrated Selectable Photocell
