Description

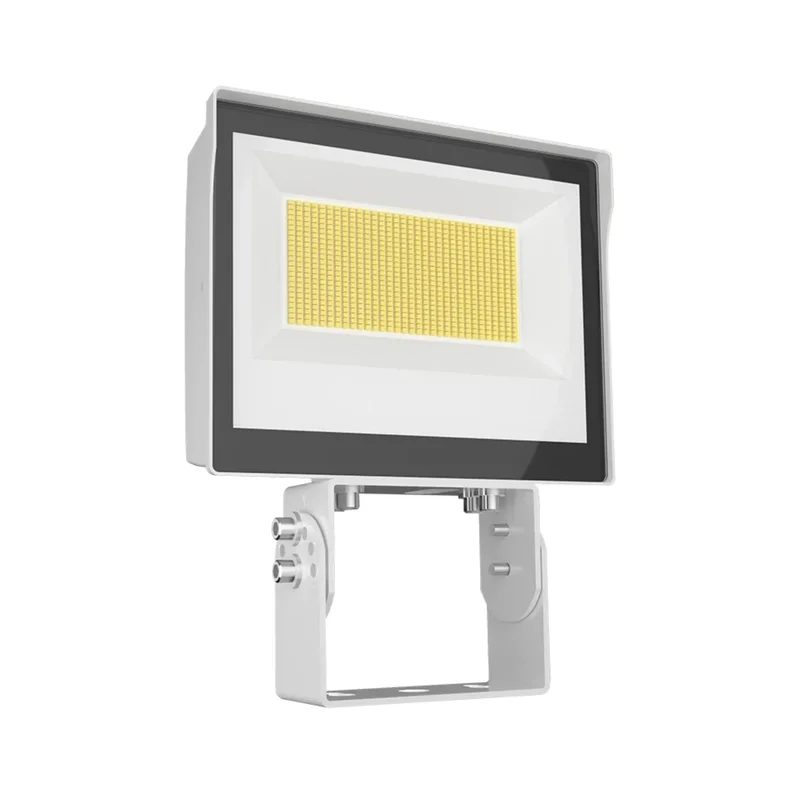

RAB X17XFU105TW Field-Adjustable Floodlight — 105W, Selectable CCT & Power, Trunnion Mount, Photocell, 120-277V, White
The RAB X17XFU105TW is a highly efficient, 3-way field-adjustable LED flood light in a clean white finish, designed to deliver massive illumination with incredible on-site versatility. This powerful luminaire produces up to 16,249 lumens and allows installers to easily toggle between three high-output wattage levels (105W, 75W, 50W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, large landscapes, and architectural accents. Operating on a 120-277V driver, this model comes fully equipped with a selectable photocell that can be easily turned on or off for automated dusk-to-dawn energy savings. Built for longevity, the X17XFU105TW is housed in precision die-cast aluminum with a tempered glass lens and earns an IP65 rating for durability against the elements. With a 5-year limited warranty and standard 0-10V dimming, it is a perfect long-term solution for professional-grade exterior lighting.
Key Features
- Wattage: 3-Way field adjustable to 105W, 75W, or 50W (factory default 105W).
- Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
- Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
- Photocell: Integrated 120-277V selectable photocell (can be turned on/off) and shorting cap.
- NEMA Type: Wide NEMA 7H x 7V beam spread.
- Mounting Type: Heavy-duty trunnion mount with 30° tilt increments.
- Delivered Lumens: Up to 16,249 lumens at the highest 105W setting.
- Environmental Ratings: IP65 rated for dust and water; UL Listed for wet locations.
- Warranty: 5-Year limited warranty.
Typical Applications
- White-themed building perimeters and facade illumination
- Large landscape, patio, and yard lighting
- Commercial signage and architectural accents
- General high-output exterior area and security lighting
Performance & Light Output
The X17XFU105TW provides high-intensity, uniform light with a maximum output of 16,249 lumens and an excellent efficacy of up to 166 lm/W. Its advanced optical design ensures excellent color consistency. With long-life surface-mount LEDs rated for 100,000 hours (based on LM-80 results and TM-21 calculations), this fixture significantly reduces maintenance and energy costs over time.
Electrical & Controls
Equipped with a Class 1 constant current driver and robust 6kV surge protection, the X17XFU105TW is built for exceptionally stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated selectable photocell to automate daylight operation.
Construction & Durability
The fixture features a rugged precision die-cast aluminum housing finished in white and a tempered glass lens. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.
Installation & Mounting
This model includes an integrated heavy-duty trunnion mount, ideal for secure installations on flat surfaces such as walls, ceilings, or ground bases. The mount features a 30° tilt increment for very precise and secure light aiming.
What’s Included
- RAB X17XFU105TW LED Field-Adjustable Floodlight (White)
- Integrated Trunnion Mount
- Integrated Selectable Photocell
- Shorting Cap
- 5-Year Manufacturer Warranty
