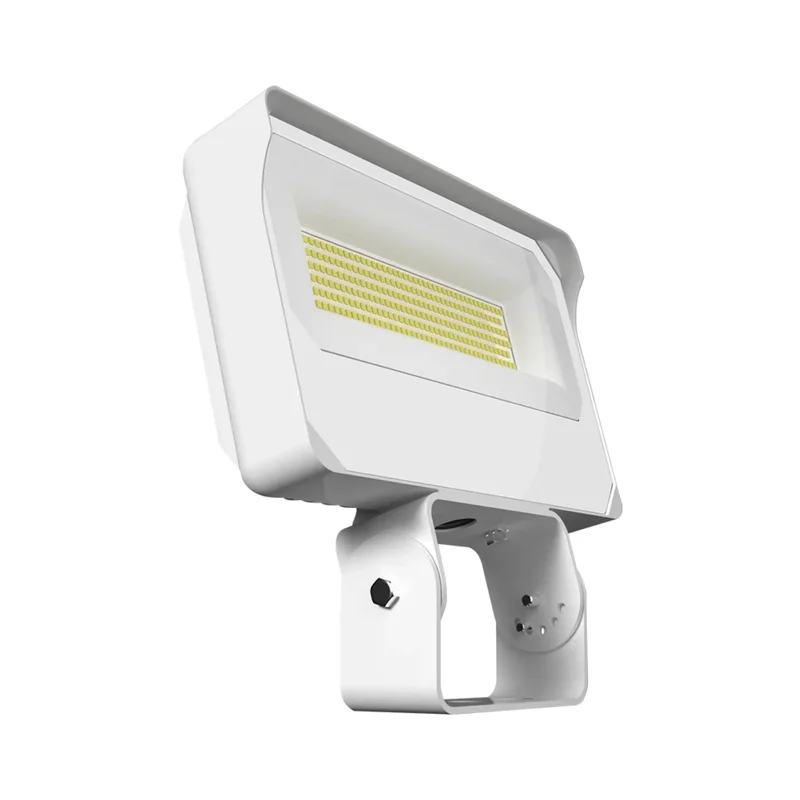

RAB X34LTW Ultra-Economy Field-Adjustable Floodlight — 90W, Selectable CCT & Power, Trunnion Mount, 120-277V, White
The RAB X34LTW is an ultra-economy, large LED flood light designed to deliver bright, customizable illumination with exceptional efficiency. This highly versatile fixture produces up to 14,040 lumens and gives installers complete control with field-adjustable wattage (90W, 80W, 70W) and color temperature (3000K, 4000K, 5000K) directly on the fixture. It provides a smooth, uniform 7H x 7V NEMA beam spread that is ideal for lighting up landscapes, large signs, and building perimeters. Operating on a 120-277V driver, the X34LTW includes 0-10V dimming and an integrated selectable On/Off photocell for maximum energy savings. Housed in rugged precision die-cast aluminum with a durable tempered glass lens, a versatile trunnion mount, a clean white finish, and an IP65 rating, the X34LTW is built to withstand extreme weather and deliver up to 100,000 hours of reliable lighting.
Key Features
- Wattage: Field adjustable to 90W, 80W, or 70W (defaults to 90W).
- Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
- Delivered Lumens: Up to 14,040 lumens depending on selected settings.
- Efficacy: Highly efficient performance up to 163.6 Lumens Per Watt (LPW).
- Voltage: 120-277V AC @ 50/60Hz.
- Dimming: 0-10V dimming down to 10%.
- Photocell: Integrated selectable On/Off photocell included.
- Beam Spread: NEMA 7H x 7V wide distribution.
- Environmental Ratings: IP65 rated for dust and water, UL Listed for wet locations.
- Compliance & Certifications: RoHS Compliant, DLC Premium Listed (Product Code: S-EZPOOW).
- Warranty: 5-Year limited warranty.
Typical Applications
- Landscape and large signage lighting
- Commercial building exteriors, walls, and perimeters
- Parking lots and wide outdoor areas
- General purpose exterior security lighting
Performance & Light Output
The X34LTW delivers consistent lumen output across its adjustable settings, reaching a maximum of 14,040 lumens at the 90W 4000K setting. The wide 7H x 7V beam spread ensures a generous wash of light for general-purpose applications. Boasting a 100,000-hour rated LED lifespan based on TM-21 calculations, this fixture drastically reduces maintenance requirements over its life.
Electrical & Controls
This large floodlight operates on a reliable 120-277V AC driver featuring standard 0-10V dimming capabilities. It features built-in surge protection of 2kV to guard against power irregularities. Additionally, it includes an integrated, selectable On/Off photocell to enable automated dusk-to-dawn operation.
Construction & Durability
Engineered to endure the elements, the X34LTW is constructed with a precision die-cast aluminum housing and a heavy-duty tempered glass lens. The fixture is fully sealed to achieve an IP65 rating, ensuring it remains protected against dust and low-pressure water jets. It operates safely in extreme cold weather starting down to -40°F (-40°C) and handles ambient temperatures up to 104°F (40°C).
Installation & Mounting
The X34LTW is equipped with a rugged trunnion mount designed for secure flat-surface installations (walls, ceilings, or ground). The trunnion allows for tilt adjustments in 30° increments to precisely aim the light.
What’s Included
- RAB X34LTW LED Field-Adjustable Floodlight (White)
- Integrated Trunnion Mount
- Integrated Photocell
