Description

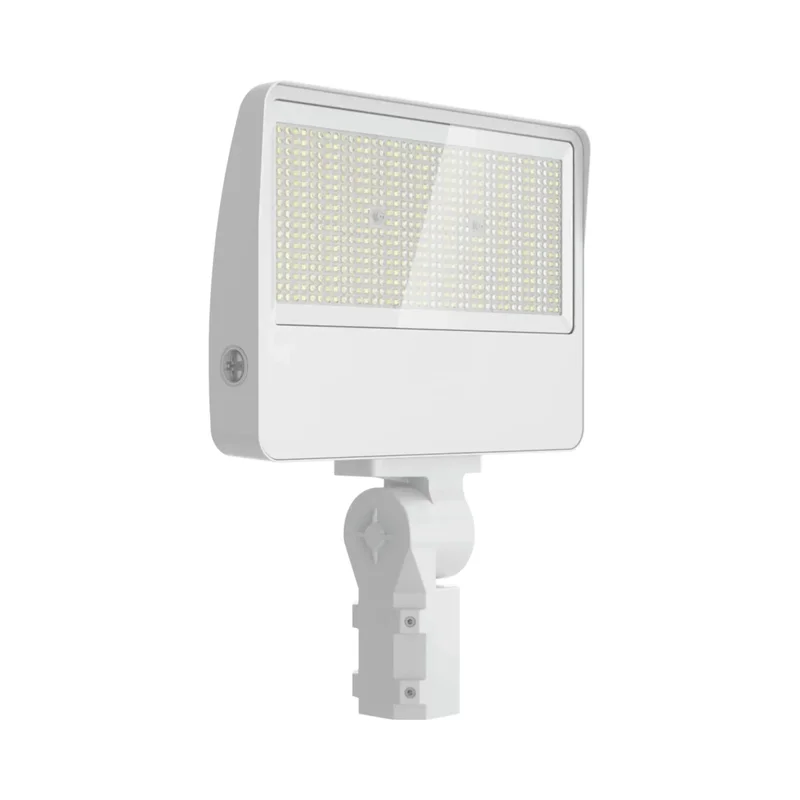

The RAB Lighting XL22 Series represents a comprehensive family of field-adjustable LED floodlights engineered for commercial and industrial outdoor applications. This versatile collection offers multiple wattage options, mounting configurations, and voltage choices to meet diverse lighting requirements across parking facilities, building exteriors, sports fields, and industrial complexes.
Every fixture in the XL22 family features field-selectable color temperatures of 3000K, 4000K, or 5000K, eliminating the need to stock multiple SKUs. Adjustable beam angles provide precise light control for each application, while DLC Premium certification ensures maximum energy rebate eligibility across all models.
Available Power Options:
- 35W models: 5,000 lumens for walkways, signage, and accent lighting
- 60W models: 9,000 lumens for parking areas and building perimeters
- 80W models: 12,000 lumens for large parking lots and industrial yards
- 150W models: 22,000 lumens for expansive areas and pole-mounted applications
Mounting Configurations:
- Knuckle mount with 180° swivel and 10° tilt increments (35W models)
- Knuckle and Trunnion mounts for versatile positioning (60W and 80W models)
- Slipfitter and Trunnion mounts for pole installations (150W models)
Finish Options:
- Bronze powder-coat for traditional architectural aesthetics
- White powder-coat for modern, clean installations
Voltage Choices:
- 120-277V for standard commercial applications
- 480V for high-voltage industrial infrastructure (150W models)
Universal Performance Features:
- Field-selectable CCT: 3000K warm white, 4000K neutral, or 5000K daylight
- Selectable beam angles for customized light distribution
- DLC Premium listed for energy incentive programs
- Photocell-ready with on/off automation capability
- 0-10V dimming compatible (dims to 10%)
- Constant current Class 1 driver for reliable operation
Rugged Construction:
- IP66 ingress protection for complete environmental sealing
- IK06 impact resistance (1 joule)
- Wet location rated for exposed outdoor installations
- Cold weather starting to -40°F (-40°C)
- Maximum ambient temperature: 122°F (50°C)
- Precision die-cast aluminum housing with high-temperature silicone gasket
- Impact-resistant polycarbonate lens
Quality and Compliance:
- UL Listed safety certification
- 100,000-hour LED lifespan based on IES LM-80 testing
- Mercury-free, UV-free, RoHS-compliant components
- RAB’s comprehensive 5-year limited warranty
Ideal Applications:
- Commercial parking lots and structures
- Building facades and architectural lighting
- Walkways and pedestrian areas
- Loading docks and industrial yards
- Sports fields and recreational facilities
- Perimeter security lighting
- Landscape and accent lighting
The XL22 Series combines RAB’s legendary durability with modern LED efficiency and field-adjustable flexibility. Whether you need compact 35-watt fixtures for accent lighting or powerful 150-watt floodlights for large-area illumination, the XL22 family provides a complete solution with consistent performance, simplified inventory management, and professional-grade reliability.
