Description

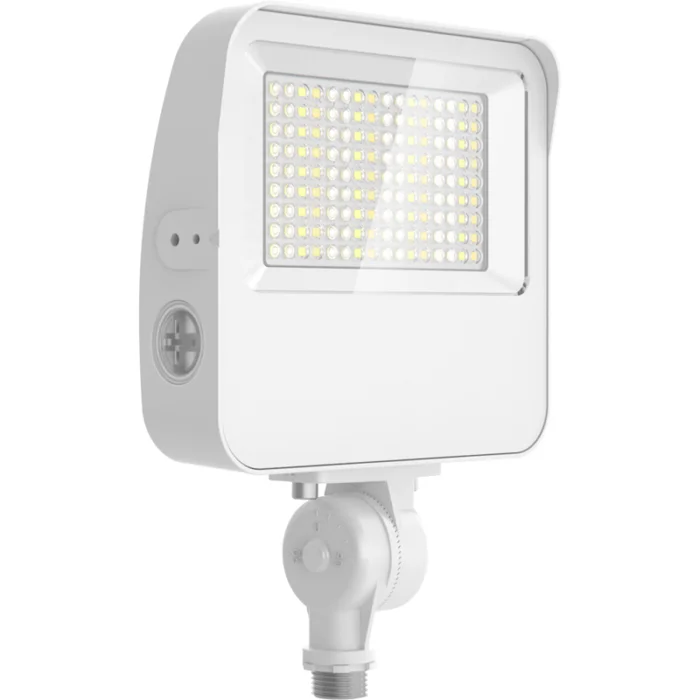

This RAB XL22 field-adjustable floodlight in white finish delivers compact, versatile illumination for commercial, residential, and outdoor applications. With selectable wattage, color temperature, and beam angle options, this fixture adapts to diverse lighting needs while providing optimized performance. The integrated photocell enables automated dusk-to-dawn operation, and each unit includes both knuckle and yoke mounting accessories for maximum installation flexibility.
- Field-selectable wattage: choose between 20W/25W/30W/35W (factory default 35W) for optimized output
- Selectable CCT: adjust between 3000K/4000K/5000K (factory default 4000K) for warm white, neutral white, or daylight illumination
- Field-adjustable beam angles: select 55°/75°/90° NEMA distributions (factory default 90°) to optimize coverage
- Maximum output of up to 5,346 lumens with 80+ CRI and efficacy up to 158.3 lm/W for energy-efficient performance
- Integrated photocell with on/off switch provides automatic lighting control for enhanced energy savings
- Complete with both knuckle mount (180° adjustable) and yoke mounting accessories
- 0-10V dimming with 120-277V operation allows dimming to 10% for flexible light control
- Operating temperature range of -40°F to 122°F for reliable performance in various environments
- IP66 rated for dust and water protection in wet locations
- 100,000 hour rated life and 5-year limited warranty
