Description

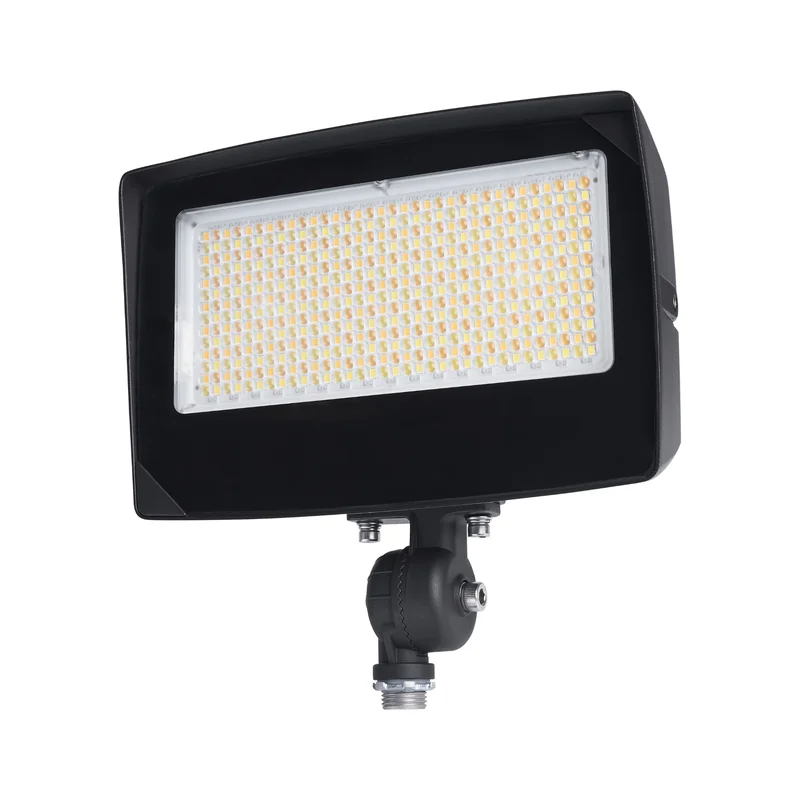

Satco|Nuvo Beam Selectable LED Flood Light — 80W/60W/45W Selectable
The Satco 65-1541 is an advanced LED flood light offering innovative beam selectable technology alongside 80W/60W/45W selectable wattage. Operating on a universal 120-347V input, it provides contractors with unparalleled flexibility and up to 11,846 lumens. The rugged die-cast design and 1/2 in. knuckle mount ensure precise illumination for commercial exterior site lighting.
Key Features
- Beam Selectable: 135°x125°, 120°x120°, or 90°x90° adjustable distributions.
- Wattage Selectable: 80W/60W/45W field-adjustable power options.
- CCT Selectable: 3000K, 4000K, and 5000K switchable color temperatures.
- Input Voltage: 120-347V universal operation.
- Light Output: Up to 11,846 lumens with a maximum 150 LPW efficacy.
- Controls: Integrated by-passable photocell for dusk-to-dawn automation.
- Dimming: Standard 0-10V continuous dimming.
- Environmental Rating: IP65 rated for wet locations.
- Lens: IK07 impact-resistant glass lens.
Typical Applications
- Commercial Building Exteriors
- Residential Landscapes
- Loading Docks
- Site Lighting
- Wall Washing
Performance & Light Output
This luminaire delivers brilliant, consistent illumination ranging from 6,757 to 11,846 lumens with an outstanding efficacy of up to 150 LPW. It features an 80 CRI LED array for clear visual acuity and a long-lasting 50,000-hour functional life. The standout feature is the physically adjustable optics, allowing installers to set the distribution to 135°x125°, 120°x120°, or 90°x90° angles to perfectly tailor the light spread.
Electrical & Controls
Powered by a robust 120-347V driver, this fixture ensures broad compatibility across standard commercial power systems. It comes equipped with 0-10V continuous dimming functionality to maximize energy savings when paired with automated building controls. Additionally, it includes a 6kV surge protector and an integrated by-passable photocell for immediate dusk-to-dawn lighting control.
Construction & Durability
Built to endure demanding outdoor environments, the fixture is constructed from rugged die-cast aluminum with a durable bronze finish. It utilizes an IK07 impact-resistant glass lens that protects internal LED components without yellowing over time. The thermally efficient design maintains optimal operating temperatures from -40°C to 50°C, ensuring long-term reliability in wet locations.
Installation & Mounting
Engineered for rapid deployment, this flood light is equipped with a standard 1/2 in. knuckle mount. It includes a separate mounting plate, allowing contractors to efficiently secure and aim the fixture on standard junction boxes or landscape posts.
What’s Included
- (1) LED Flood Light with Knuckle Mount
- (1) Mounting Plate
