Description

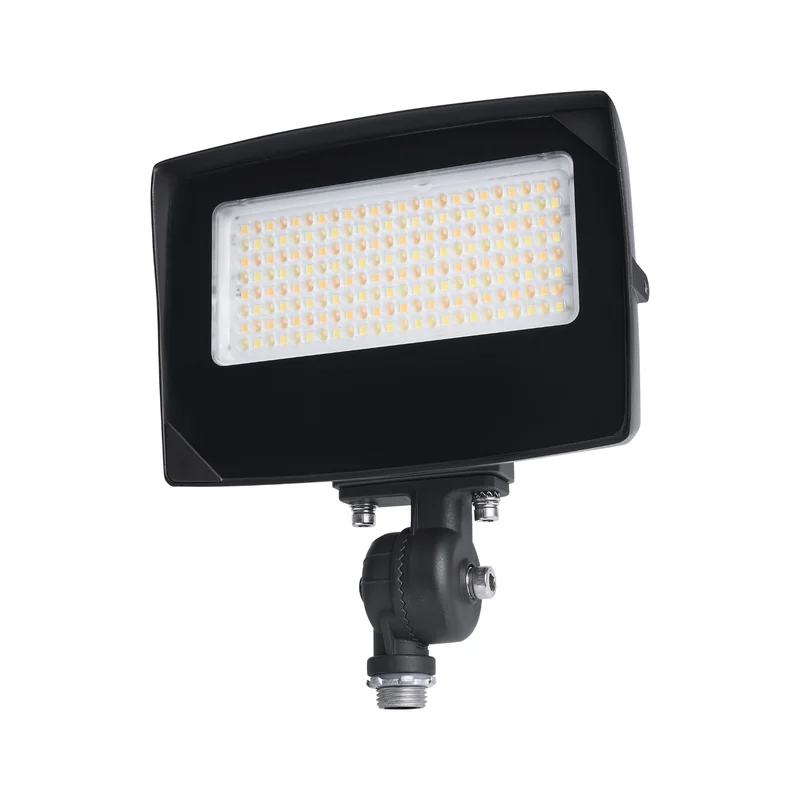

Satco|Nuvo Beam Selectable LED Flood Light — 35W / 80W / 150W / 300W, Selectable CCT, 120-347V, Bronze
The Satco|Nuvo Beam Selectable LED Flood Light is a rugged, high-performance commercial LED flood light engineered to deliver precise, adaptable exterior illumination across building facades, parking areas, pole-mounted site lighting, and landscape applications. Available in four wattage tiers — 35W (65-1540), 80W (65-1541), 150W (65-1542), and 300W (65-1543) — all models feature beam selectable technology with physically adjustable optics, field-selectable wattage, selectable 3000K/4000K/5000K CCT, an integrated by-passable photocell, and a 0-10V dimming driver. The 35W and 80W models include a 1/2 in. knuckle mount; the 150W and 300W models include a 2-3/8 in. slip-fitter mount for pole and tenon installation. All models are IP65 wet location rated with a 100,000-hour L70 lifespan.
Satco|Nuvo Beam Selectable Flood Light Features
- Beam Selectable Technology: Physically adjustable optics set the beam distribution on-site — 35W/80W: 135°×125°, 120°×120°, or 90°×90°; 300W: 135°×125°, 110°×110°, or 95°×95° — one fixture optimized for any application without changing optics.
- Four Wattage Tiers: Choose 35W, 80W, 150W, or 300W to match the exact illumination level and mounting height required.
- Field-Selectable Wattage: Three power settings per model allow on-site energy optimization — 35W: 35/25/15W; 80W: 80/60/45W; 150W: 150/125/100W; 300W: 300/250/200W.
- Selectable CCT: Field-adjustable 3000K, 4000K, and 5000K color temperatures via on-fixture switch.
- Integrated By-Passable Photocell: Built-in dusk-to-dawn sensor with bypass switch for automated or manual operation — no external sensor required.
- High Efficacy: Up to 153 LPW (35W), 150 LPW (80W), 151 LPW (150W), and 157 LPW (300W) with 80 CRI across all tiers.
- Dual Mounting Options: 35W & 80W include a 1/2 in. knuckle mount; 150W & 300W include a 2-3/8 in. slip-fitter for pole/tenon installation.
- IP65 Wet Location Rated: Complete protection against dust and water ingress for reliable outdoor performance.
- IK07 Impact-Resistant Glass Lens: Protects LED components without yellowing over time.
- 0-10V Continuous Dimming: Full dimming interface for compatibility with commercial lighting control systems.
- Universal Voltage: 120-347V input compatible with standard commercial and industrial electrical systems.
- 6kV Surge Protection: Guards internal components against power transients on exterior circuits.
- 100,000-Hour Lifespan: L70-rated LED life with a 5-year warranty — virtually eliminates maintenance over the fixture’s service life.
Beam Selectable Technology
Each model features physically adjustable optics that lock into the selected beam distribution during installation — no tools or additional components required:
- 35W & 80W models:
- 135°×125° (Wide): Maximum spread for wall washing, building facades, and broad area coverage.
- 120°×120° (Intermediate): Balanced distribution for general site and parking area lighting.
- 90°×90° (Narrow): Concentrated illumination for targeted accent or security lighting.
- 150W model: Same 135°×125° / 120°×120° / 90°×90° distributions.
- 300W model:
- 135°×125° (Wide): Maximum spread for large area and pole-mounted site lighting.
- 110°×110° (Intermediate): Balanced distribution for parking lots and commercial exteriors.
- 95°×95° (Narrow): Concentrated output for high-mounting-height targeted illumination.
Wattage Options & Lumen Output
Select the output tier and mounting type that match your application:
- 35W (65-1540) — Knuckle Mount: 35W: 5,292lm at 153 LPW | 25W: ~3,800lm | 15W: 1,998lm — 7.8”×3.15”×8.8”, 3.26 lbs
- 80W (65-1541) — Knuckle Mount: 80W: 11,846lm at 150 LPW | 60W: ~8,900lm | 45W: ~6,700lm — 9.76”×3.62”×9.74”, 4.8 lbs
- 150W (65-1542) — Slip-Fitter Mount: 150W: 22,754lm at 151 LPW | 125W: ~19,000lm | 100W: ~15,200lm — 12.51”×5.57”×14.22”, 10.71 lbs
- 300W (65-1543) — Slip-Fitter Mount: 300W: 47,273lm at 157 LPW | 250W: ~39,400lm | 200W: ~31,500lm — 16.35”×6.74”×17.0”, 17.24 lbs
CCT Options: All models offer 3000K (warm white), 4000K (neutral white), and 5000K (daylight) — selectable on-site to match site lighting requirements or architectural specifications.
Typical Applications
- Commercial building exteriors and facades.
- Parking lots and site lighting (pole/tenon mounted — 150W & 300W).
- Loading docks and service area lighting.
- Residential and commercial landscape lighting.
- Wall washing and architectural accent lighting.
- Security and perimeter lighting.
Performance & Light Output
All four tiers deliver high-efficacy output — up to 157 LPW — with 80 CRI and physically adjustable beam distributions for precise coverage optimization. The IK07 glass lens ensures uniform light distribution without yellowing over time. The 100,000-hour L70 lifespan dramatically reduces re-lamping and maintenance costs versus legacy HID flood lights.
Electrical & Controls
Each model is powered by a robust driver operating on 120-347V AC, ensuring compatibility across standard commercial and higher-voltage industrial power systems. All configurations include 0-10V continuous dimming, a 6kV surge protector, and an integrated by-passable photocell for automated dusk-to-dawn operation without external sensors.
Construction & Durability
The die-cast aluminum housing is finished in a durable bronze powder coat and carries an IP65 rating for complete protection against dust and water ingress in wet outdoor locations. The IK07-rated glass lens resists physical impact and UV degradation. The thermally efficient design operates reliably in extreme ambient temperatures from -40°C to 50°C (-40°F to 122°F).
Installation & Mounting
The 35W and 80W models include a 1/2 in. knuckle mount and a separate mounting plate for installation on standard junction boxes, landscape posts, or wall surfaces. The 150W and 300W models include a 2-3/8 in. slip-fitter mount for secure pole or tenon installation. All models include an integrated by-passable photocell — no external sensor required.
What’s Included
- Satco|Nuvo Beam Selectable LED Flood Light — Bronze (wattage selected above)
- Knuckle Mount + Mounting Plate (35W & 80W) or Slip-Fitter Mount (150W & 300W)
