Satco|Nuvo High Performance LED Flood Light, 15-25W Selectable, 3000K/4000K/5000K, 3000lm, 120-347V, IP65, Photocell, Bronze/Black

Description

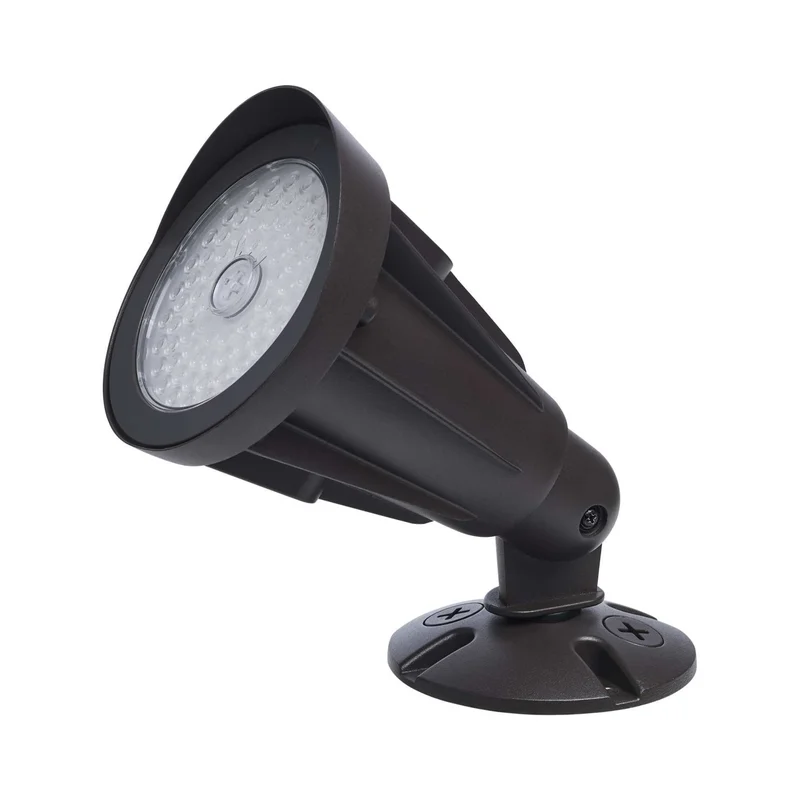

Satco|Nuvo High Performance LED Flood Light — 25W/20W/15W Selectable, 3000K/4000K/5000K, 120-347V, Bronze & Black

The Satco|Nuvo High Performance LED Flood Light is a compact, precision-engineered LED flood light designed for architectural uplighting, building facade highlighting, landscape illumination, and sign lighting. Available in Bronze (65-1250) and Black (65-1251) finishes, both models deliver identical performance: field-selectable 25W/20W/15W wattage, up to 3,000 lumens, and an innovative NEMA beam selectable dial that switches between 4V×4H, 5V×5H, and 6V×6H distributions on-site. Selectable 3000K/4000K/5000K CCT, an integrated bypassable photocell, 0-10V dimming, and a 4kV surge protector are standard across both finishes. The IK10 polycarbonate lens and IP65 rating ensure reliable performance in demanding outdoor environments.

Satco|Nuvo High Performance Flood Light Features

• NEMA Beam Selectable Dial: Innovative on-fixture dial switches between 4V×4H (narrow spot), 5V×5H (medium), and 6V×6H (wide flood) NEMA distributions — precise targeting without changing optics or fixtures.
• Two Finish Options: Available in Bronze (65-1250) and Black (65-1251) — identical specs, choose the finish that complements your architectural or landscape design.
• Field-Selectable Wattage: 25W/20W/15W — set on-site to match illumination and energy targets up to 3,000 lumens.
• Selectable CCT: Field-adjustable 3000K, 4000K, and 5000K color temperatures via on-fixture switch for optimal architectural color rendering.
• Integrated Bypassable Photocell: Built-in dusk-to-dawn sensor with bypass option for automated or manual operation — no external sensor required.
• IK10 Impact-Resistant Lens: Vandal-resistant polycarbonate lens rated for the highest level of impact protection.
• IP65 Wet Location Rated: Complete protection against dust and water jets for reliable outdoor performance.
• 0-10V Dimming: Full dimming interface for compatibility with commercial lighting control systems.
• Universal Voltage: 120-347V input compatible with standard commercial and industrial electrical systems.
• 4kV Surge Protection: Guards internal components against electrical spikes on exterior circuits.
• 1/2 in. Knuckle Mount: Included with mounting plate for rapid, targeted aiming on junction boxes or landscape posts.
• 50,000-Hour Lifespan: L70-rated LED life with a 5-year warranty for long-term outdoor reliability.

NEMA Beam Selectable Technology

The defining feature of this fixture is the on-fixture beam selectable dial — adjusted during installation to match the exact application:

• 4V×4H (Narrow Spot): Concentrated, high-intensity beam for flagpole illumination, sign lighting, and tight architectural accent work.
• 5V×5H (Medium Flood): Balanced distribution for building facade highlighting and monument illumination.
• 6V×6H (Wide Flood): Maximum spread for landscape and garden lighting, broad wall washing, and general exterior area coverage.

Color & Wattage Options

• Bronze (65-1250): 25W: 3,000lm | 20W: ~2,400lm | 15W: ~1,800lm — 7.71”×4.82”×4.92”, 1.32 lbs
• Black (65-1251): 25W: 3,000lm | 20W: ~2,400lm | 15W: ~1,800lm — 7.71”×4.82”×4.92”, 1.32 lbs

CCT Options: Both finishes offer 3000K (warm white), 4000K (neutral white), and 5000K (daylight) — selectable on-site to match architectural lighting requirements.

Typical Applications

• Architectural uplighting and building facade highlighting.
• Landscape and garden lighting.
• Sign, monument, and flagpole illumination.
• Residential and commercial exterior accent lighting.
• Wall washing and decorative exterior lighting.

Performance & Light Output

Both models deliver up to 3,000 lumens at up to 120 LPW with 80 CRI for accurate color rendering in architectural and landscape applications. The NEMA beam selectable dial provides precise distribution control from narrow spot to wide flood. The 50,000-hour L70 lifespan and IP65/IK10 ratings ensure long-term outdoor reliability with minimal maintenance.

Electrical & Controls

Each model is powered by a robust driver operating on 120-347V AC with a power factor greater than 0.9 and THD below 20%. All configurations include 0-10V dimming, a 4kV surge protector, and an integrated bypassable photocell for automated dusk-to-dawn operation without external sensors.

Construction & Durability

The heavy-duty die-cast aluminum housing is available in Bronze or Black and carries an IP65 rating for complete protection against dust and water jets. The IK10-rated polycarbonate lens resists vandalism and physical impact. The fixture operates reliably in extreme ambient temperatures from -40°F to 113°F (-40°C to 45°C).

Installation & Mounting

Includes a 1/2 in. knuckle mount and mounting plate for rapid, targeted aiming on standard electrical junction boxes or landscape posts. The NEMA beam dial and CCT/wattage selector switches are adjusted during installation and lock securely in the selected position.

What’s Included

• Satco|Nuvo High Performance LED Flood Light (finish selected above)
• 1/2 in. Knuckle Mount
• Mounting Plate
• Installation Hardware
